VAS 5054a ODIS 2.2.6+ PostSetup 6.70.1 Win 7 installation

VAG Volkswagen VAS 5054A ODIS diagnostic software for VW, Audi, Skoda, Seat, Bentley & Lamborghini is newly updated to 2.2.6 version with PostSetup 6.70.150. Here is the instruction on installing ODIS V2.2.6 on Windows 7 operating system.

Software version: ODIS 2.2.6 + Postsetup 6.70.150+ free license
Hardware: The new ODIS 2.26 software works with vas 5054 interface pass-thru SP33, SP33-B, SP33-C and SP33-BO (NO SP33-D !!!)

Operating system: Windows 7 (32-bit is better)

ODIS engineering 2.2.6 software installation on Win 7:

Main steps:
Step1: Install Driver
Step 2: Install ODIS software
Step 3: Activate/Validate license
Step 4: Mount PostSetup-6.70.150
Step 5: Activate ODIS 2.2.6
Step 6: Connect vas 5054 via USB
Step 7: Bluetooth connection

Step1: Install Driver
Open ODIS 2.2.6 software CD
Copy and paste Daemon-Tools-4.49.1356 zip file to desktop

Unzip the file
Open Daemon-Tools-4.49.1356 folder, mount “InstalGadget” and run as administrator

Accept security warning, click “Install”
Adding virtual device

Click “Install”
System will detect driver and automatically install it

Step 2: Install ODIS software
Open Daemon-Tools folder on desktop
Open 01.Setup folder
Open ODIS-S v2.2.6-RC369L-P6-Setup

Select language
Install Offboard Diagnostic Information System Service setup, click “Continue”

Select target folder, press “Continue”
Select language again
Press “Continue” until the system asks to select the license file
Search license file to C:ODIS-2.2.6/02.Patch License/license.dat

Press Continue
Click “Finish” when ODIS setup is well installed

Step 3: Activate/Validate license
Open ODIS 2.2.6 CD
Open 02.Patch License folder
Copy OffboardDiagLauncher and follow next step

Right click Offboard Diagnostic System Service software on desktop>>Properties>>Open File Location>> paste and replace OffboardDiagLauncher on the existing folder

Open Daemon tools folder
If the system prompts “unable” to find activated DAEMON Tools Lite license, press “Continue”
Choose license type: Free license and click “Activate”

Click “Validate” to confirm license info.
License was validated successfully.

Step 4: Mount PostSetup-6.70.150
Add image to “Image Catalog”
Browse image to C:/ODIS 2.2.6/03.Postsetup 6.70.150/ Postsetup 6.70.150

Mount PostSetup-6.70 iso

Step 5: Activate ODIS 2.2.6
Open ODIS v2.2.6 software on desktop
Select Local directory to BD-ROM Drive (G:100)/Postsetup

Enter activation User name: abc and Keyword: abc (both low-case “abc”), press forward arrow to see Postsetup version

Press forward arrow to download 384 files ODIS.data file, the procedure takes about 30 minutes

Download completely will open ODIS automatically
ODIS release notes information
Click “Admin” on the right
Select software language
Exit the ODIS

Step 6: Connect vas 5054 via USB
Open Computer
Eject BD-ROM Drive (G:100)

Connect vas5054a interface with computer and vehicle
System will automatically install vas 5054a device driver
Open Computer>>Manager>>Device Manager>>Softing Vehicle Interface>> VAS5054 to make sure well communication is built

Run ODIS software on desktop
Press “Start diagnosis”
Turn ignition switch
Select vehicle information, model, year, engine etc

Select model and function your need diagnose

Step 7: Bluetooth connection
If you need to diagnose wirelessly, follow these steps to add Bluetooth.
Tick the Bluetooth icon on toolbar, click “Add a device”

Select “VAS5054” and add to device

Enter Bluetooth pair password: 082145725

Open Computer>>Manager>>Device Manager>> check Com port was set to COM4 >>Network adapters Bluetooth Device to check Bluetooth connection is well built

Open ODIS Service Diagnostic Interface Configurator on desktop

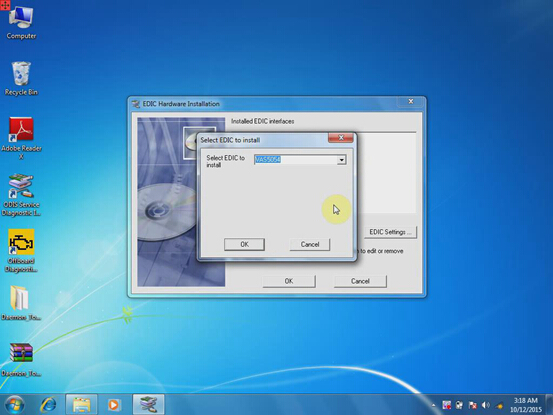

Click “Add EDIC”
Select “VAS5054” to install

Select Local Bluetooth COM Port (COM4)

Run ODIS software
Star diagnose vehicle wirelessly

PP077 ODIS 2.2.6+ vas5054a
