VAS 5054A Audi VW V2.2.3 ODIS software installation

VAG VAS 5054a Bluetooth diagnostic scanner ODIS software has upgraded to current V2.2.3 (2.23) version that works on Volkswagen and imported VW& Audi models. Following is the detail V2.2.3 ODIS installation instruction on Windows 7 operating system.

Operating system: Win XP/Win 7

1)Create new folder
Open My Computer>>D://
Create a new folder and name it “audi-vw-odis2.2.3”
Copy “VW audi ODIS2.2.3.part1” setup and paste it to the new created folder
Eject DVD Driver (F:) you will get VW audi ODIS2.2.3.part2, copy it to the new created folder
Eject DVD Driver(F:) again, you will get AUDI-VW ODIS2.2.3 license and part3 setup, copy both of them to the new created folder
Check the filer that contains these four files

Select AUDI-VW ODIS 2.2.3 part1.past2 and part3, extract them to a folder and rename the folder “ODIS 2.23”
Cut AUDI-VW ODIS 2.2.3 part1.past2 and part3

2) Install vas 5054 ODIS setup
Open My Computer >>D://>> “audi-vw-odis2.2.3”>> “ODIS 2.23”>> VWAUDIODIS 2.2.3>>dav>>Odis>>Trade-Wholesale>>software>>installation
Copy ODIS-Sv2.2.3-RC320L-Setup to C://
Open and run ODIS-Sv2.2.3-RC320L-Setup on C://
Select software language

Follow system prompt to save file to disk C
Search license at D:// audi-vw-odis2.2.3//AUDI-VW ODIS 2.2.3-License//license//license.dat

Install Microsoft Visual C++2005
Finish installing Setup Wizard

3) Activate & Configure ODIS V2.2.3 software
Open “AUDI-VW ODIS2.2.3 license” on D://, copy and replace “OffboardDiagLauncher” on the desktop

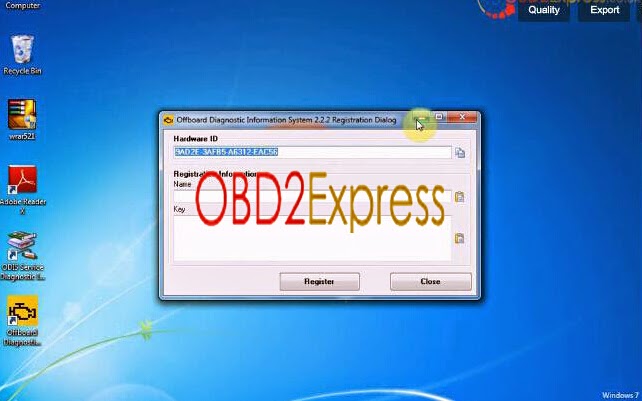

Open “OffboardDiagLauncher” on the desktop, copy hardware ID and send the activation ID to the related salesman for activation

Paste the activation registration name and activation key from salesman, click Register

Configure data input. Click “Select local directly” and locate Local Disk D://audi-vw-odis2.2.3//ODIS2.2.3//dav
Enter User Name: abc and keyword, press continue button

Update check results
Software is loading, you will be able to check the new software information
Exit the software main program

4) Connect vas 5054a
Connect VAS 5054a Bluetooth scanner with vehicle and computer
Open My computer>>Device Manager>>Softing Vehicle Interface>>VAS5054, to check the well communication is built
Open “OffboardDiagLauncher” on the desktop
Select “Start diagnosis” on the main function menu
Turn vehicle ignition to ON
VAS 5054a ODIS software will automatically detect vehicle information, select vehicle version and engine type to continue

Check the control unit

5) Bluetooth matching
Install device driver software
Find out Bluetooth connection on the right bottom corner of the system
Click Add a Device

Select VAS5054 interface to add to the computer
Select the device’s pairing code

Bluetooth connection is well built, the device is ready to use

6) Configure hardware
Open ODIS Service Diagnostic Interface Configuration on the desktop
Press Add EDIC button
Select EDIC to install VAS5054 from the drop down list

Select COM port as COM4

Software installation procedure is complete, start to diagnose vehicle with vas 5054a ODIS 2.2.3 software
